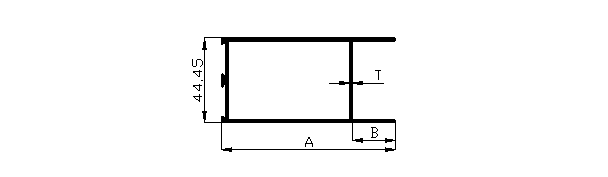

Door Bottom Detail|Extruded Aluminum Bottom Detail

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

Section Number	Dimension In MM			Nominal Weight (Kg/ m )	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/ m )	Min	Max
1221	95.00	25.00	1.45	1.180	4.100	4.500
1222	95.00	25.00	1.80	1.430	5.000	5.500
1226	114.00	25.40	1.60	1.400	5.100	5.500
