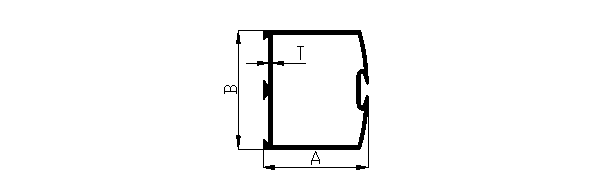

Door Vertical Detail|Extruded Aluminum Vertical Detail

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

Section Number	Dimension In MM			Nominal Weight (Kg/ m )	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/ m )	Min	Max
1201	47.62	44.45	1.20	0.660	2.400	2.700
1202	47.62	44.45	1.35	0.745	2.700	3.000
1202/H	47.62	44.45	1.50	0.847	3.000	3.300
1203	47.62	44.45	1.65	0.929	3.300	3.600
1211	83.00	44.45	1.55	1.161	4.100	4.400
1212	83.00	44.45	1.75	1.325	4.700	5.000
1213	83.00	44.45	2.55	1.970	7.100	7.500
