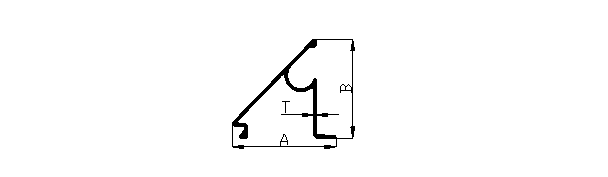

Glazing Clip Detail|Extruded Aluminum Glazing Clip Detail

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

Section Number	Dimension In MM			Nominal Weight (Kg/ m )	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/ m )	Min	Max
1251L	18.50	17.20	0.40	0.057	0.210	0.230
1251	18.50	17.20	0.45	0.066	0.230	0.250
1252	18.50	17.20	0.50	0.071	0.250	0.270
1253	18.50	17.20	0.55	0.078	0.270	0.300
1254	18.50	17.20	0.60	0.085	0.300	0.320
1255	18.50	17.20	0.65	0.090	0.320	0.350
1256	18.50	17.20	0.73	0.098	0.350	0.380
