34 Series Outer Frame Detail

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

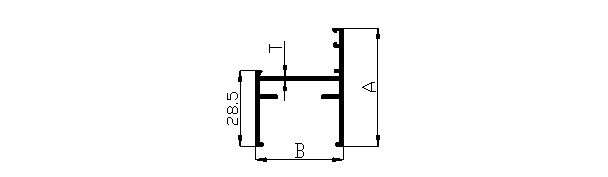

Section Number	Dimension In MM			Nominal Weight (Kg/ m )	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/ m )	Min	Max
1301	44.50	34.00	1.50	0.515	1.650	1.900
1302	44.50	34.00	1.60	0.545	1.900	2.100
1303	44.50	34.00	1.70	0.601	2.100	2.300

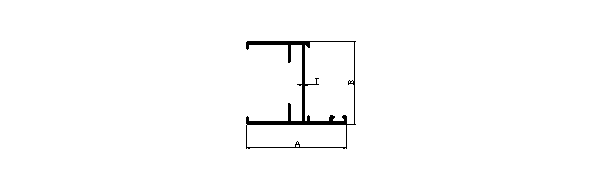

Section Number	Dimension In MM			Nominal Weight (Kg/ m )	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/ m )	Min	Max
AL-809	43.90	34.00	1.05	0.355	1.200	1.350
