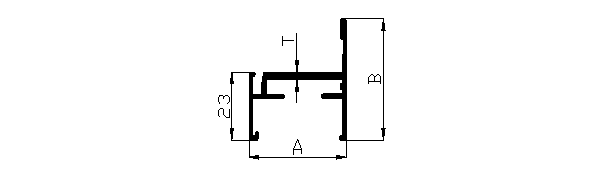

40 Series Outer Frame Detail

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

Section Number	Dimension In MM			Nominal Weight (Kg/ m )	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/ m )	Min	Max
1321	40.00	41.00	2.30	0.601	2.100	2.300
1322	40.00	41.00	2.50	0.669	2.300	2.600
