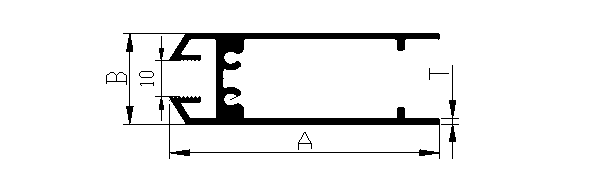

H Section Detail|Aluminum Extruded H Section Detail

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

Section Number	Dimension In MM			Nominal Weight (Kg/ m )	Weight Range (Kg/12')
Section Number	A	B	T	Nominal Weight (Kg/ m )	Min	Max
2151	69.00	25.40	1.50	0.861	3.000	3.300
2152	69.00	25.40	1.60	0.943	3.300	3.600
2153	69.00	25.40	1.80	1.025	3.600	3.900
