18 MM Series Two Track Bottom Details

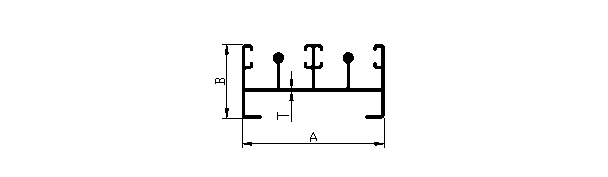

Aluminium extruded 18 mm two track bottom sliding window
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
1821 61.4 31.5 0.90 0.601 2.10 2.30

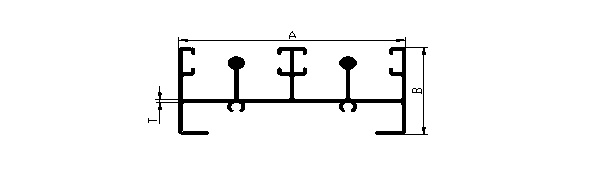

Aluminium extruded 18 mm two track top sliding window
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
1821R1 61.4 31.5 0.90 0.685 2.30 2.50
Sliding window Series
