Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

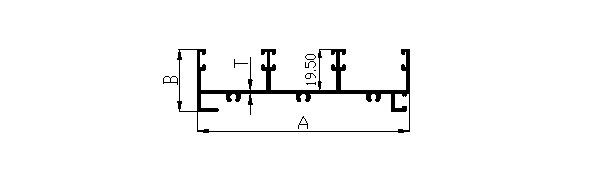

20 MM Series Three Track Top Details
Aluminium extruded 20 mm three track top sliding window
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
2011L 92.36 29.70 0.75 0.574 2.100 2.400
2011 92.36 29.70 0.85 0.682 2.400 2.600
2012 92.36 29.70 1.00 0.752 2.600 2.900
2013 92.36 29.70 1.20 0.864 3.000 3.300
2013/H 92.36 29.70 1.30 0.864 3.000 3.400
2014 92.36 29.70 1.40 0.978 3.400 3.800
2015 92.36 29.70 1.50 1.04 3.800 4.100
