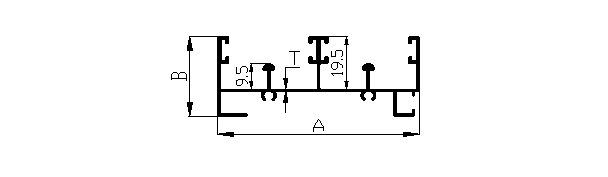

20 MM Series Two Track Bottom Details
Aluminium extruded 20 mm two track bottom sliding window
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
2021L 62 29.50 0.75 0.492 1.800 2.000
2021 62 29.50 0.85 0.574 2.000 2.200
2022 62 29.50 1.00 0.628 2.200 2.400
2023 62 29.50 1.20 0.710 2.500 2.700
2024 62 29.50 1.35 0.779 2.700 3.000
2025 62 29.50 1.50 0.85 3.000 3.300
