equal angle Details

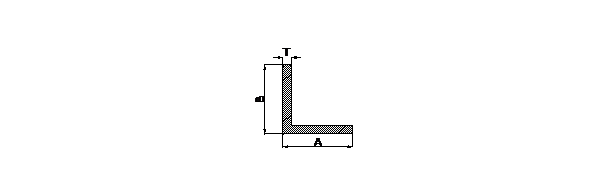

Aluminum extruded equal angle
Section Number Drg No. Dimension in MM Nominal Weight (Kg / m ) Weight Range (Kg/12')
A T Min Max
5034 AL-849R1 11 1 0.057
5040 AL-832 19.5 1.5 0.152
5041 AL-833 23.5 1.5 0.184
3202 25.00 1.50 0.502 0.700 0.800
3203 25.00 2.80 0.376 1.250 1.500
5046 AL-834 30.00 2.000 0.313
3204 38.00 3.75 0.751 2.600 2.900
5048 AL-855 40.00 2.00 0.421
3205 50.00 2.50 0.546 1.900 2.100
3205H 50.00 2.00 0.683 2.400 2.600
3206 50.00 4.50 1.175 4.100 4.500
3207 50.00 6.00 1.544 5.500 5.800
5051 AL-835 52.00 2.00 0.551
3215 65.00 8.00 2.623 9.300 9.900
AL-965 76.20 9.52 3.670
AL-966 63.50 6.35 2.070
AL-967 50.00 8.00 1.990
