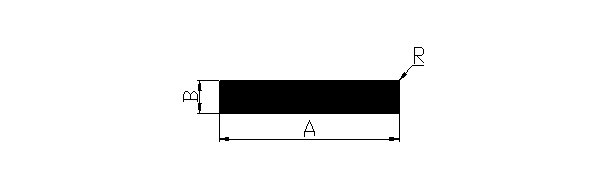

Flat Bar Details
Aluminum extruded flat bar
Section Number Drawing No. Dimension In MM Nominal Weight Weight Range
A B Min Max
5001 AL-847 10 2.00 0.054
5003 AL-848 15 2.00 0.081
7400 17 4.00 0.199 0.680 0.780
AL-256 18.5 3.50 0.175 0.620 0.670
7401 19 1.00 0.060 0.190 0.250
7401A 19 1.50 0.081 0.280 0.310
7401B 19 2.00 0.107 0.370 0.410
7402 19 3.00 0.163 0.570 0.620
7403 19 6.00 0.325 1.140 1.240
7403A 20 12.00 0.656 2.300 2.500
7403B 20 5.00 0.273 0.900 1.100
7404 25 1.00 0.071 0.250 0.270
7404A 25 1.50 0.107 0.370 0.410
7404B 25 2.00 0.141 0.490 0.540
7404C 25 2.50 0.175 0.600 0.680
7405 25 3.00 0.219 0.750 0.850
7406 25 5.00 0.355 1.250 1.350
7407 25 6.00 0.437 1.500 1.700
7407A 25 8.00 0.540 1.900 2.060
7408 25 9.50 0.676 2.375 2.575
7408A 25 10.00 0.683 2.400 2.600
7409 25 12.00 0.847 3.000 3.200
7409A 30 5.00 0.434 1.480 1.700
7409B 30 6.00 0.492 1.700 1.900
7410 30 10.00 0.833 2.900 3.200
7418 30 12.00 0.997 3.500 3.800
5017 AL-857 35 2.00 0.189
7410B 38 2.00 0.225 0.750 0.900
7411 38 3.00 0.328 1.100 1.300
7413 38 6.00 0.642 2.200 2.500
7414 38 9.50 1.011 3.600 3.800
7416 38 12.00 1.243 4.400 4.700
AL-575 38.1 2.00 0.205 0.730 0.830
7425 40 12.00 1.325 4.700 5.000
7426 40 3.00 0.355 1.200 1.400
7427 40 6.00 0.676 2.350 2.600
7428 40 10.00 1.12 3.900 4.300
7429 50 3.00 0.410 1.400 1.600
7429A 50 4.00 0.546 1.900 2.100
7430 50 4.50 0.642 2.200 2.500
7431 50 6.00 0.833 2.900 3.200
7433 50 10.00 1.393 4.900 5.300
7435 50 12.00 1.680 5.900 6.400
7436 50 12.50 1.735 6.100 6.600
7437 50 16.00 2.227 7.800 8.500
7439 60 10.00 1.626 5.750 6.150
7440 60 12.00 1.981 6.950 7.500
7441 63 9.50 1.680 5.900 6.400
7442 63 10.00 1.701 6.200 6.600
7443 63 12.00 2.104 7.400 8.000
7444 70 6.00 1.175 4.100 4.500
7445 75 6.00 1.257 4.400 4.800
7446 75 10.00 2.077 7.400 7.800
7449 75 12.00 2.514 8.900 9.500
75 20.00 4.050 14.500 15.500
7450 80 3.00 0.656 2.300 2.700
7452 80 10.00 2.268 7.900 8.700
7453 80 12.00 2.664 9.300 10.200
7454 75 20.00 4.057 14.450 15.250
7455 100 6.00 1.694 5.900 6.500
7456 100 8.00 2.165 7.600 8.250
7457 100 10.00 2.773 9.800 10.500
7459 100 12.00 3.361 11.800 12.800
7459A 100 16.00 16.150 15.800 16.500
7459B 100 20.00 5.396 19.200 20.300
7459C 100 30.00 8.101 29.000 30.300
7460 110 10.00 2.985 10.600 11.250
7460A 110 12.00 3.572 12.700 13.450
7460B 120 8.00 2.596 9.200 9.800
7460C 120 10.00 3.279 11.500 12.250
7461 120 12.00 3.907 13.800 14.800
7462 125 10.00 3.408 12.050 12.900
7463 125 12 4.242 14.550 15.500
7465 150 6.00 2.459 8.600 9.400
7466 150 10.00 4.098 14.500 15.500
7467 150 12.00 4.918 17.500 18.500
AL-963 140.00 10.00 3.780
AL-964 90.00 8.00 1.940
