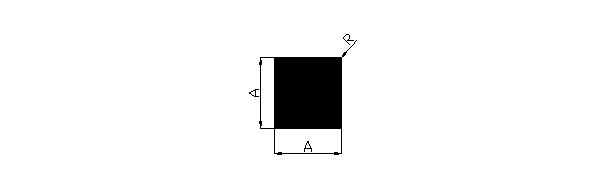

Square Bar Detail|Extruded Aluminum Solid Section

Aluminum is light weight, strong , resistant to corrosion. Not surprisingly, it has become the second most widely used metal, next to steel.

Drop
a note

Section Number	Dimension in MM	Nominal Weight (Kg / m )	Weight Range (Kg/12')
Section Number	A	Nominal Weight (Kg / m )	Min	Max
7001	12.70	0.451	1.550	1.750
7003	15.80	0.697	2.400	2.700
7004	19.00	0.997	3.500	3.800
7005	25.40	1.762	6.300	6.600
7007	32.00	2.814	10.000	10.600
7009	38.00	3.962	14.000	15.000
