Rectangular tube Details

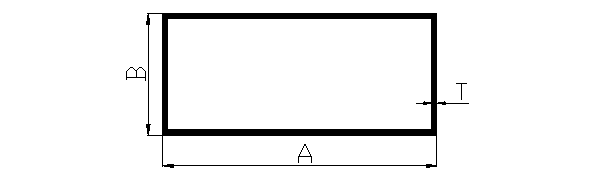

Aluminium extruded hollow rectangular tube
Section Number Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max
5090 AL-856 20.00 10.00 1.50 0.231
5092 AL-836 35.00 20.00 1.50 0.421
1501L 36.10 24.40 0.55 0.178 0.600 0.700
1501 36.10 24.40 0.68 0.219 0.750 0.850
1502 36.10 24.40 0.76 0.253 0.850 1.000
1503 36.10 24.40 0.95 0.301 1.000 1.200
1504 36.10 24.40
 1.10 0.355 1.200 1.400
1505 36.10 24.40
 1.70 0.546 1.900 2.100
1506L 50.00 25.40 0.52 0.205 0.700 0.800
1506 50.00 25.40 0.61 0.246 0.800 1.000
1507 50.00 25.40 0.75 0.301 1.000 1.200
1508 50.00 25.40 0.90 0.335 1.200 1.400
1508/M 50.00 25.40 1.00 0.410 1.400 1.600
1508/H 50.00 25.40 1.15 0.464 1.600 1.800
1509 50.00 25.40 1.30 0.513 1.800 2.100
1509/H 50.00 25.40 1.57 0.642 2.200 2.500
1510 50.00 25.40 2.00 0.772 2.700 3.000
1510A 50.00 25.40 2.60 1.107 3.900 4.200
1510H 50.00 25.40 4.00 1.475 5.200 5.800
1511 63.50 38.10 0.75 0.405 1.350 1.550
1512L 63.50 38.10 1.00 0.464 1.800 2.000
1512 63.50 38.10 1.10 0.580 2.000 2.200
1512A 63.50 38.10 1.25 0.628 2.200 2.400
1513 63.50 38.10 1.55 0.820 2.900 3.100
1514 63.50 38.10 2.90 1.500 5.400 5.800
1531 76.00 25.00 1.60 0.861 3.000 3.300
1532 76.00 25.00 2.20 1.148 4.000 4.500
1533 82.00 38.00 1.55 0.978 3.600 4.000
1535L 100.00 25.40 1.30 0.861 2.900 3.200
1535 100.00 25.40 1.40 0.915 3.200 3.500
1530 101.60 19.00 2.30 1.585 5.600 6.000
1521 101.60 44.45 1.45 1.120 4.000 4.300
1522 101.60 44.45 1.60 1.230 4.300 4.700
1522/H 101.60 44.45 1.74 1.339 4.700 5.200
1523 101.60 44.45 1.90 1.460 5.200 5.700
1524 101.60 44.45 2.50 2.049 7.200 7.800
1525 101.60 44.45 4.00 2.982 10.600 11.400
1545 127.00 25.40 1.80 1.421 5.000 5.500
1550 150.00 50.00 2.00 2.120 7.500 8.000
