Miscellaneous Details
Aluminium extruded Miscellaneous
Drg No. Dimension In MM Nominal Weight Weight Range
A B T Min Max

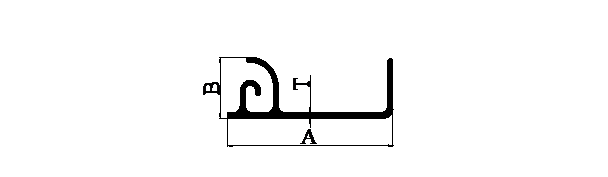

AL-296 65.00 22.50 2.00 0.725 2.550 2.800
Aluminium extruded Miscellaneous
Drg No. Dimension In MM Nominal Weight Weight Range
A B T Min Max

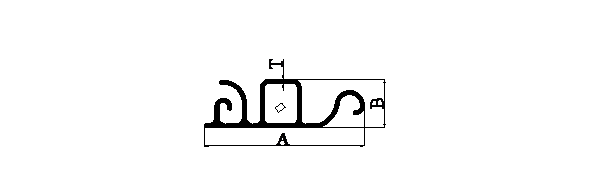

AL-297 76.00 23.00 2.00 1.075 3.800 4.200
Aluminium extruded Miscellaneous
Drg No. Dimension In MM Nominal Weight Weight Range
A B T Min Max

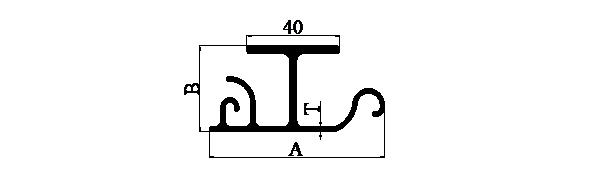

AL-298 76.00 35.00 2.00 1.392 4.900 5.350
Aluminium extruded Miscellaneous
Drg No. Dimension In MM Nominal Weight Weight Range
A B T Min Max

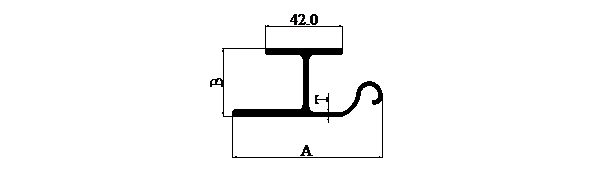

AL-299 81.50 35.00 2.00 1.296 4.600 5.050
Aluminium extruded Miscellaneous
Drg No. Dimension In MM Nominal Weight Weight Range
A B T Min Max

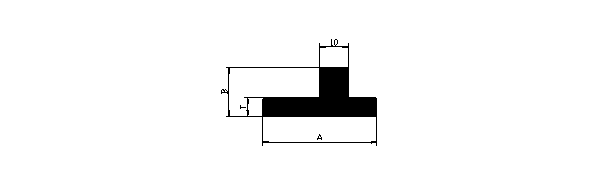

AL-568 40.00 16.00 6.00 0.918 3.300 3.600
Aluminium extruded Miscellaneous
Drg No. Dimension In MM Nominal Weight Weight Range
A B T Min Max

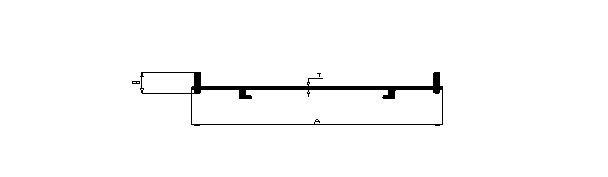

AL-635 42.00 5.80 1.00 0.157 0.550 0.600
Aluminium extruded Cooker Ferrule
Section Number Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

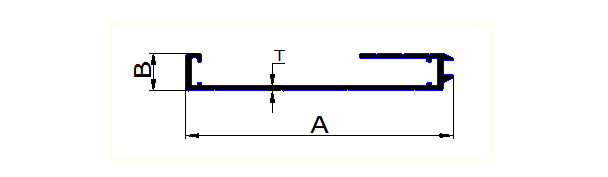

7525 AL-118 80.00 13.50 1.80 0.656 2.300 2.500
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

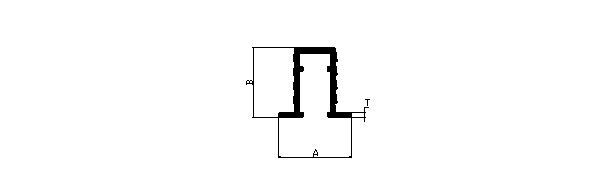

AL-150 16.80 15.00 1.10 0.155 0.540 0.640
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

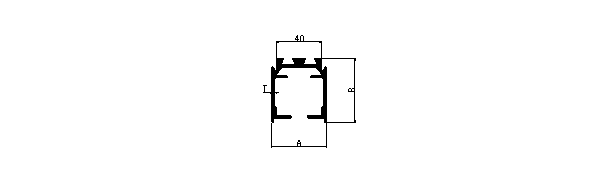

AL-213 48.00 54.00 2.00 1.513
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

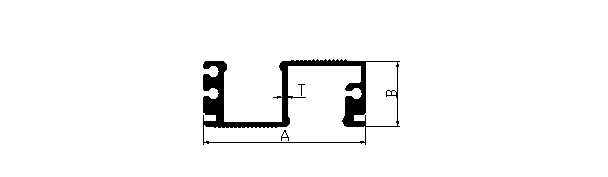

AL-253 80.00 29.60 2.20 1.600 5.600 6.200
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

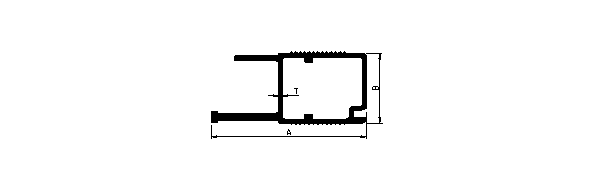

AL-254 70.00 29.60 1.70 1.150 4.000 4.400
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

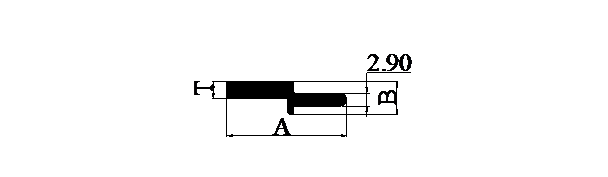

AL-432 26.50 7.30 3.80 0.252
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

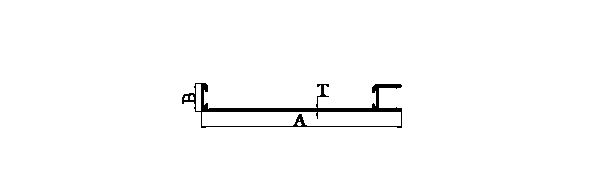

AL-433 124.00 17.00 1.60 0.807
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

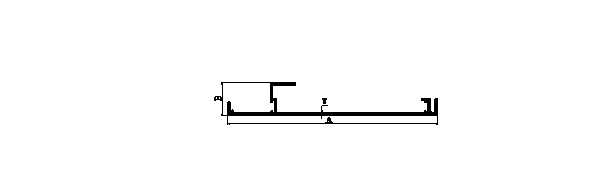

AL-434 175.00 27.10 2.25 1.577
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

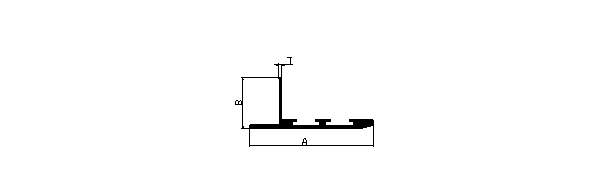

AL-458 46.00 19.00 1.00 0.290
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

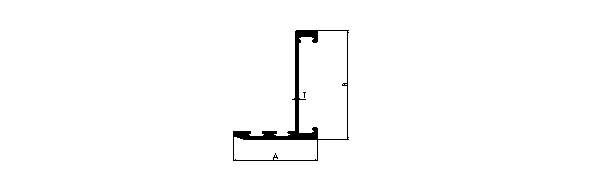

AL-459 43.70 48.00 1.20 0.524
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

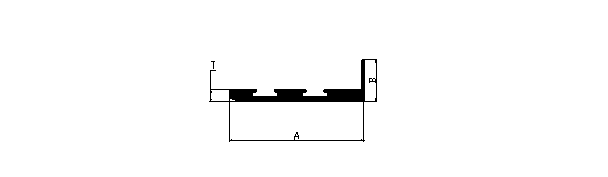

AL-460 54.45 14.00 4.00 0.495
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

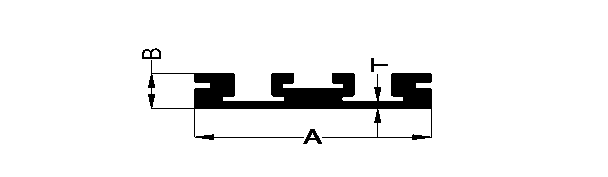

Al-461 50.70 10.15 2.00 0.839 2.900 3.300
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

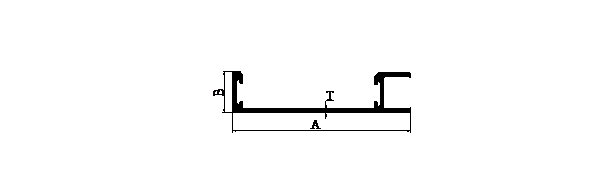

AL-492 73.00 17.00 1.60 0.610
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

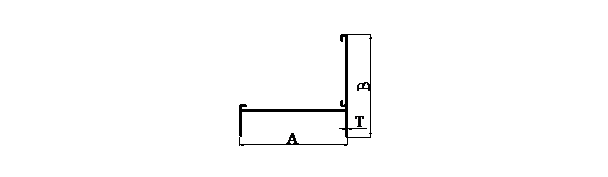

AL-511 50.00 47.50 0.90 0.504
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

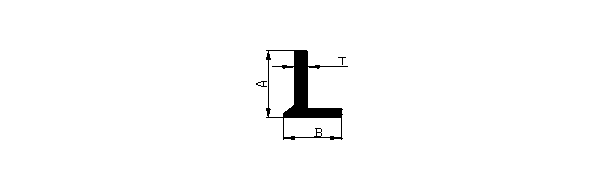

Al-589 39.00 26.00 6.00 0.893 3.150 3.450
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

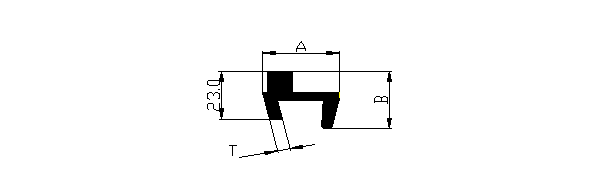

Al-590 30.00 27.42 5.00 0.896 3.150 3.450
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

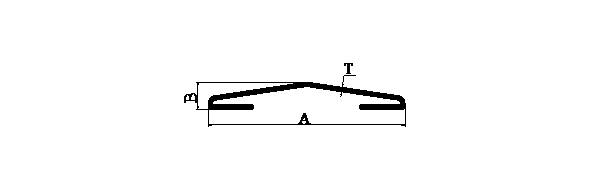

AL-595 65.00 9.00 1.50 0.392 1.350 1.550
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

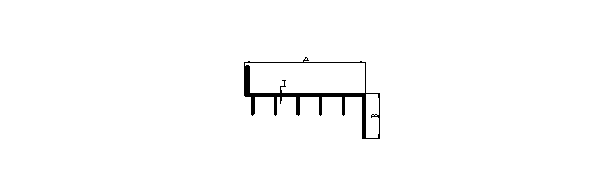

AL-656 96.00 47.50 2.50 1.809 6.500 7.100
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

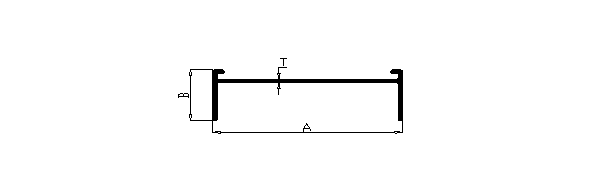

AL-658 48.00 17.00 1.90 0.269 0.980 1.160
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

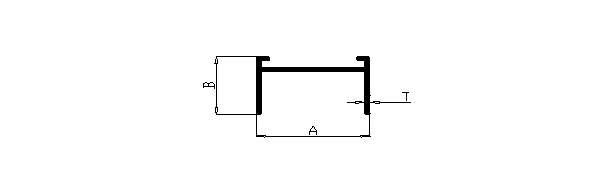

AL-659 25.00 17.00 1.20 0.194 0.700 0.860
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

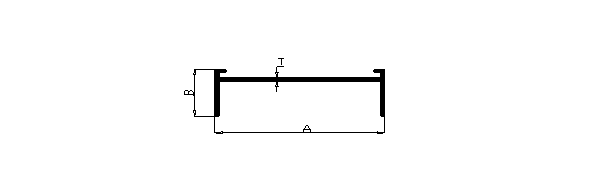

AL-660 46.00 17.00 1.20 0.262 0.950 1.100
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

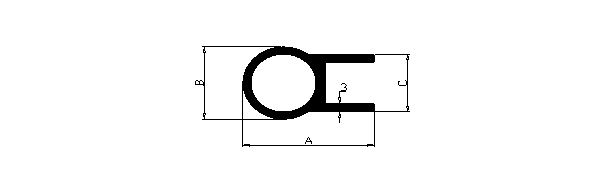

Al-754 40.40 25.00 20.00 0.822
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

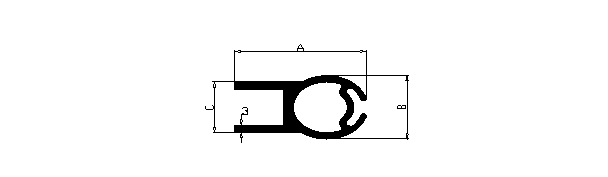

Al-755 39.89 25.00 20.00 0.863
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

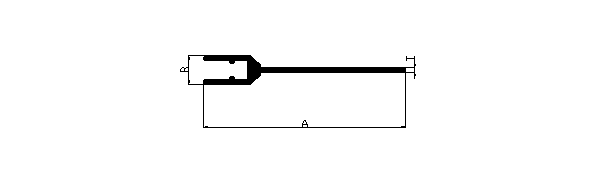

AL-783 62.50 9.90 1.50 0.396 1.400 1.600
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

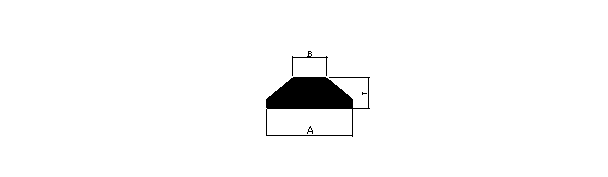

AL-846 30.00 12.00 10.00 0.639 2.250 2.600
Aluminium extruded Cooker Ferrule
Drg. No. Dimension in MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

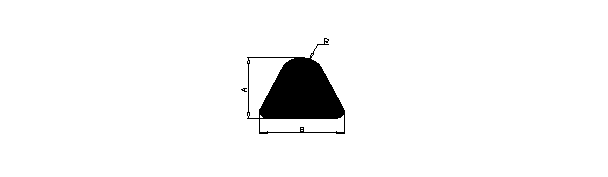

Al-565 52.50 50.00 13.00 4.929
Aluminium extruded Foam Work
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

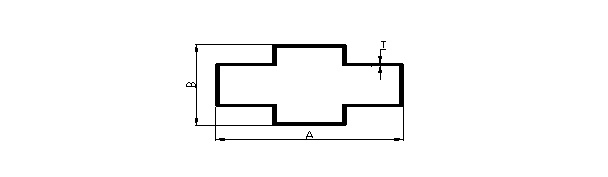

Al-522 111.00 58.00 2.00 1.781 6.350 6.900
Aluminium extruded Foam Work
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

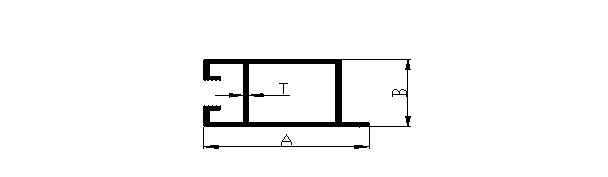

Al-523 58.40 32.00 2.00 1.002 3.550 3.850
Aluminium extruded Foam Work
Drg. No Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

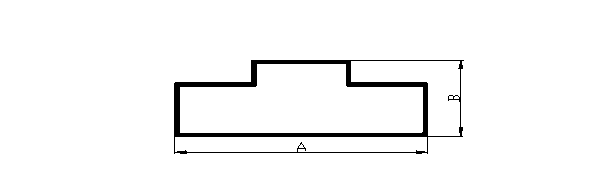

Al-524 111.00 44.70 2.00 1.638 5.850 6.350
Aluminium extruded Foam Work
Section Number Dimension In MM Nominal Weight (Kg/m) Weight Range (Kg/12')
A B T Min Max

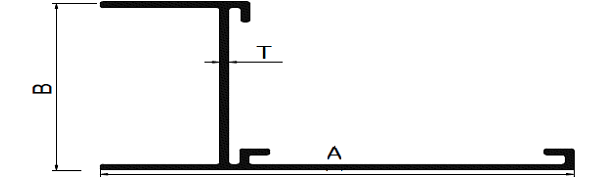

AL-959 47.50 25.00 0.90 0.234 0.850 0.950
