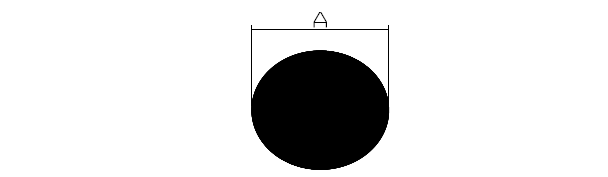

Round Bar Details
Aluminum extruded round bar
Section Number Drawing No. Diameter (mm) O.D. Nominal Weight (Kg / m ) Weight Range (Kg/12')
Min Max
5026 AL-830 6.00 0.076
7201 6.35 0.0956 0.300 0.400
5027 AL-823 8.00 0.136
AL-903 9.50 0.191 0.600 0.800
7203 12.00 0.328 1.100 1.300
AL-924 12.50 0.331 1.150 1.300
AL-333 12.70 0.342 1.150 1.350
7204 AL-344 11.00 0.256 0.900 1.050
AL-904 15.00 0.477 1.650 1.900
7205 15.80 0.546 1.900 2.100
7206 17.20 0.629 2.250 2.360
7207 19.00 0.765 2.700 2.900
7208 AL-343 14.00 0.415 1.500 1.700
AL-332 16.20 0.556 1.950 2.150
7209 22.00 1.079 3.750 3.950
7210 AL-333 12.70 0.342 1.250 1.400
AL-923 25.00 1.323 4.600 5.100
7211 25.40 1.380 4.900 5.200
7213 30.00 1.913 6.700 7.300
7219 32.00 2.186 7.700 8.300
7221 36.00 2.747 9.800 10.300
7225 40.00 3.497 12.400 13.200
AL-938 18.45 0.722 2.500 2.800
AL-939 28.40 1.710 5.950 6.600
AL-940 33.70 2.410 8.350 9.300
Solid Section Series
