round edge flat bar Details

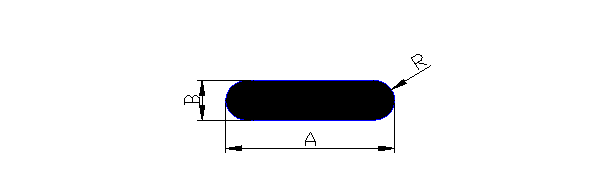

Aluminum extruded Round Edge Flat bar
Section Number Drawing No. Dimension In MM Nominal Weight Weight Range
A B R Min Max
7725 AL-306 35.05 9.65 4.83 0.861 2.900 3.350
7727 40.00 6.00 3.00 0.669 2.300 2.600
7730 40.00 10.00 5.00 1.052 3.700 4.000
7732 50.00 7.00 3.50 0.943 3.300 3.600
7735 50.00 10.00 5.00 1.346 4.750 5.100
7736 50.00 12.50 6.25 1.639 5.800 6.200
7738 56.00 10.00 5.00 1.448 5.300 5.900
7750 65.00 12.00 6.00 2.077 7.300 7.900
7745 75.00 16.00 8.00 3.183 11.300 12.000
7740 77.00 8.00 4.00 1.639 5.800 6.200
7752 77.00 12.00 6.00 2.391 8.500 9.000
7755 120.00 10.00 5.00 3.251 11.500 12.300
7760 80.00 10.00 5.00 2.158 7.600 8.200
7790 100.00 10.00 5.00 2.705 9.600 10.200
7791 100.00 12.00 6.00 3.183 11.400 11.900
