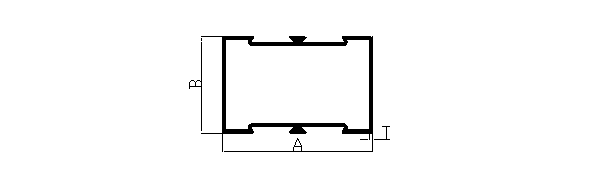

Double Partition Details
Aluminum extruded door double partition
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
1071 50.80 25.40 0.85 0.434 1.450 1.700
1072 50.80 25.40 1.05 0.510 1.700 2.000
1073 50.80 25.40 1.20 0.593 2.000 2.300
1074 50.80 25.40 1.50 0.710 2.400 2.700
1091 63.50 38.10 0.75 0.500 1.700 1.900
1092 63.50 38.10 0.85 0.560 1.900 2.100
1093 63.50 38.10 1.00 0.640 2.100 2.400
1094 63.50 38.10 1.10 0.670 2.400 2.600
1095 63.50 38.10 1.20 0.750 2.600 3.000
1096 63.50 38.10 1.40 0.860 3.000 3.300
1096/H 63.50 38.10 1.55 0.902 3.300 3.700
1097 63.50 38.10 1.75 1.050 3.700 4.000
1098 63.50 38.10 1.90 1.130 4.000 4.400
1098/H 63.50 38.10 2.15 1.257 4.400 4.900
1099 63.50 38.10 2.40 1.380 4.900 5.500
1100 63.50 38.10 2.90 1.630 5.500 6.100
1121 101.60 44.45 1.20 1.040 3.700 4.000
1122 101.60 44.45 1.30 1.120 4.000 4.400
1122/H 101.60 44.45 1.45 1.202 4.400 4.800
1123 101.60 44.45 1.65 1.420 4.900 5.300
1124 101.60 44.45 1.75 1.510 5.300 5.900
1125 101.60 44.45 1.95 1.680 5.900 6.500
1125/H 101.60 44.45 2.18 1.831 6.500 7.300
1126 101.60 44.45 2.45 2.110 7.300 8.000
1127 101.60 44.45 3.00 2.480 8.900 9.300
Door Partition Series
