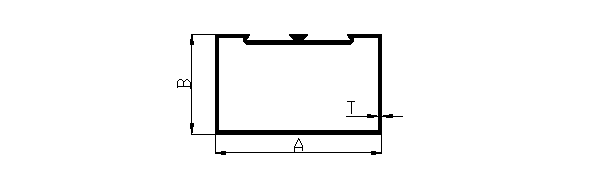

Single Partition Details
Aluminum extruded door single partition
Section Number Dimension In MM Nominal Weight (Kg/ m ) Weight Range (Kg/12')
A B T Min Max
1001 50.80 25.40 0.95 0.440 1.400 1.700
1002 50.80 25.40 1.10 0.500 1.700 2.000
1003 50.80 25.40 1.30 0.593 2.000 2.400
1004 50.80 25.40 1.60 0.690 2.400 2.800
1021 63.50 38.10 0.80 0.494 1.700 1.900
1022 63.50 38.10 0.90 0.550 1.900 2.100
1023 63.50 38.10 1.05 0.620 2.100 2.400
1024 63.50 38.10 1.15 0.670 2.400 2.600
1025 63.50 38.10 1.30 0.750 2.600 3.000
1026 63.50 38.10 1.50 0.850 3.000 3.300
1026/H 63.50 38.10 1.60 0.920 3.300 3.700
1027 63.50 38.10 1.85 1.030 3.700 4.000
1028 63.50 38.10 2.00 1.120 4.000 4.500
1028/H 63.50 38.10 2.15 1.175 4.500 5.000
1029 63.50 38.10 2.50 1.370 5.000 5.500
1030 63.50 38.10 3.00 1.620 5.500 6.000
1051 101.60 44.45 1.25 1.060 3.700 4.000
1052 101.60 44.45 1.40 1.140 4.000 4.400
1052/H 101.60 44.45 1.50 1.175 4.400 4.900
1053 101.60 44.45 1.70 1.370 4.900 5.300
1054 101.60 44.45 1.85 1.490 5.300 5.800
1055 101.60 44.45 2.05 1.640 5.800 6.300
1055/H 101.60 44.45 2.15 1.640 6.500 7.000
1056 101.60 44.45 2.55 2.080 7.400 8.000
1056/H 101.60 44.45 2.75 2.185 8.200 8.800
1058 101.60 44.45 3.10 2.480 8.800 9.400
Door Partition Series
